IEC 61508 certificate for SafeRTOS from TUV SafeRTOS has been independently certified by TÜV SÜD as having been developed in accordance with the rigour necessary for IEC 61508 projects at a safety integrity level (SIL) of 3 - the highest level that can be achieved for a single software component. TÜV SÜD have also certified SafeRTOS against the EN62304 medical device standard.

TÜV SÜD have separately certified that the development processes used by WITTENSTEIN high integrity systems are themselves suitable for use in IEC 61508 projects at the SIL 3 level.

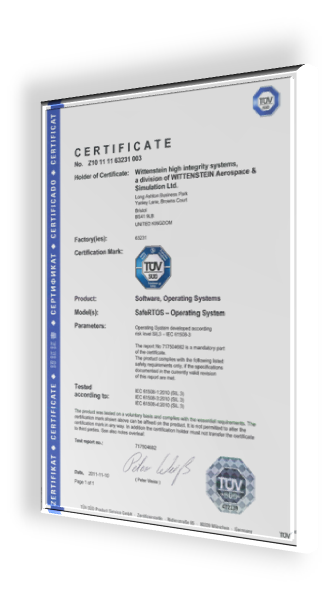

IEC 61508 certificate for SafeRTOS from TUV
IEC 61508 is an international standard covering the development and usage of electrical, electronic and programmable electronic, safety related systems. In this context, a safety related system is a system that performs one or more safety functions. IEC 61508 covers both hardware and software development, so, with due consideration, safety functions can be performed by software.

The standard defines the analysis, design, implementation, production and test requirements for safety related systems in accordance to the Safety Integrity Level (SIL) assigned to the system. The SIL is assigned according to the risks associated with the use of the system under development, with a maximum SIL of 4 being assigned to systems with the highest perceived risk. The higher the assigned SIL number the lower the rate of failure must be for all identified unsafe failure modes.

IEC 61508 is made up of seven parts. Primary information is contained in parts one to three. Supplementary material is contained in parts four to seven. All seven parts together define a system development safety lifecycle.

Summary of parts one to three:

  • Part one defines the necessary development management system including how the system safety requirements are to be calculated, elicited and defined.
  • Part two relates to the hardware aspects of the system development. It contains the techniques required to reduce both systematic and random hardware failures.
  • Part three relates to the software aspects of the system development. Unlike hardware, software cannot suffer random failures, and so part three contains the techniques required to guard against systematic failures.
Part one and three are relevant to SafeRTOS.

Software Certification

Systematic failures are not generally quantifiable, and cannot be mitigated using the same techniques as used to mitigate the risk of random hardware failures. Instead, systematic failures are mitigated through the implementation of rigorous and process driven analysis, specification, design, realisation and test techniques. The affect of such mitigations are also not generally quantifiable, so to credibly claim compliance with IEC 61508 it is necessary to have your development process and compliance evidence assessed by a third party who is accepted as an expert in the field.

Compiler Verification

Read the article describing how SafeRTOS ensures compliance with the IEC 61508 requirements for certified translation tools, and how this simplifies the certification of your end product.
