FreeRTOS Demo for the TI MSP430F5438 (MSP430X) Microcontroller
Using the Code Composer Studio IDE and Compiler
[RTOS Ports]

FreeRTOS running on the MSP 430F5438 Experimenter board

The demo documented on this page is deprecated as it has been superseded by demos that use later hardware and tool versions.


This page documents the FreeRTOS demo application for the MSP430F5438 microcontroller (with an MSP430X core) from Texas Instruments. The demo uses the MSP430 Code Composer Studio IDE and compiler, and targets the official MSP-EXP430F5438 experimenter board from TI (instructions are provided should you wish to use an alternative development board).

The port and demo project were developed and tested using the 'Large' and 'Small' data models, and the 'Large' and 'Small' code models.

Features of FreeRTOS that are demonstrated by this demo project

The project demonstrates the following FreeRTOS features and techniques:
  • The 'gatekeeper' task design pattern

    The demo LCD task is the only task that is permitted to access the LCD, so is the LCD 'gatekeeper'. Other tasks and interrupts that want to write strings to the LCD do not access the LCD directly, but instead send the string they wish to display to the LCD task using a FreeRTOS queue.

  • The 'controller' task design pattern

    The LCD task also demonstrates the 'controller' task design pattern. Messages that are sent to the LCD are structures that contain both a message type and a message value parameter. The LCD task knows what to do with the message value (which can be an integer, character pointer, or anything else) by first inspecting the message type.

  • Controlled (not free running) polling of an input

    A button polling task uses the vTaskDelay() FreeRTOS API function to control the rate at which it reads a button input. This removes the need for complex button debouncing, as well as preventing the task from utilising all of the available processing time.

  • (Effectively and indirectly) Writing to the LCD from an interrupt service routine

    Slow output devices such as LCDs cannot normally be accessed efficiently from an interrupt service routine. In this demo the joystick select button is used to generate an external interrupt, and the interrupt service routine sends a string to the LCD indirectly by sending it to the LCD task on a message queue. This is using the LCD task as a 'gatekeeper' task as described above.

  • An Idle task hook function

    The demo makes use of the idle task hook to place the processor into a low power state. Note however that the demo is implemented using standard task implementations that are used by many different demos, and is therefore not optimised for low power operation. Lower power consumption would be achieved by converting polling tasks into event driven tasks, and slowing the tick interrupt frequency, etc.

  • Software timer callback functions

    The demo makes use of a software timer to implement 'watchdog' type functionality. It periodically monitors all the other tasks in the system to look for any unexpected behaviour. It then sends either a PASS or an error code status message to the LCD/Controller task. The LCD/Controller demo task uses the message type member of the message it receives to interpret the message as a status message, then uses the message value member of the same message to determine which status string it should write to the LCD.

    The demo application also creates the standard software timer test task, which is part of the set of standard demo tasks.

  • A malloc() failed hook function

    The malloc() failed hook will be called when a call to pvPortMalloc() fails because there is not enough FreeRTOS heap memory available for the allocation to complete. pvPortMalloc() can be called from application tasks, but is also called from FreeRTOS API functions that create tasks, queues and semaphores.

  • Querying the amount of FreeRTOS heap memory that remains unallocated

    xPortGetFreeHeapSize() is called from a task after the RTOS scheduler has been started and outputs the amount of FreeRTOS heap memory that remains unallocated (the amount of heap memory that is still available) to the LCD.

IMPORTANT! Notes on using the MSP430X CCStudio 4 Demo

Please read all the following points before using this RTOS port.

  1. Source Code Organisation
  2. The Demo Application
  3. RTOS Configuration and Usage Details
See also the FAQ My application does not run, what could be wrong?

Source Code Organisation

The FreeRTOS download contains the source code for all the FreeRTOS ports so includes many more files than are required for this demo. See the Source Code Organization section for a description of the downloaded files and information on creating a new project.

The CCS project file for the MSP430F5438 demo is located in the FreeRTOS/Demo/MSP430X_MSP430F5438_CCS4 directory. This is the project that should be imported into the CCS workspace. The Preparing the Eclipse project section below contains important information on setting up the demo project directory, and importing the demo project into Code Composer Studio.

The Demo Application

Demo application hardware setup

The demo application includes an interrupt driven UART test. This creates two tasks, a transmit task and a receive task. The transmit task transmits characters on UCA1, and the receive task receives characters on the same UCA1 peripheral. The receive task expects to receive the characters transmitted by the transmit task, but as there is no external 9 way connector, the hardware is internally configured to use a loopback mode. Therefore, unlike other FreeRTOS demos, it is not necessary to fit an external loopback connector to the UART for the COM port test to work.

Note that the implementation of the UART interrupt service routine is provided to demonstrate the use of queues from inside an interrupt service routine. It is not intended to be an example of an efficient interrupt implementation. A real application should make use of the DMA. Or, as a minimum, transmission and reception could use a simple RAM ring buffer, and synchronise with a task using a semaphore when a complete message has been received or transmitted.

The port was developed and tested using a Texas Instruments MSP-FET430UIF USB debug interface.

Preparing the CCS (Eclipse) project directory

Eclipse projects can be either standard makefile projects, or managed make projects. The MSP430X CCS4 project uses a managed make project. This in turn means that either:
  1. All the source files needed to build the project must be located under the folder/directory that contains the project file itself, or
  2. That the Eclipse workspace (note workspace, not project) needs to be configured to locate the files elsewhere on the hard disk.
Option 1 is used in this case. To that end, the directory FreeRTOS/Demo/MSP430X_MSP430F5438_CCS4 contains a batch file called CreateProjectDirectoryStructure.bat that will copy all the required FreeRTOS source files into sub directories inside the demo project directory.

CreateProjectDirectoryStructure.bat must be executed before the Code Composer Studio project is imported into the Eclipse workspace.

CreateProjectDirectoryStructure.bat cannot be executed from within the Code Composer Studio Eclipse IDE.

Importing the demo application project into the CCS Eclipse workspace

To import the MSP430X CCS project into an existing or new Eclipse Workspace:
  1. Select "Import" from the CCS "File" menu. The dialogue box shown below will appear.

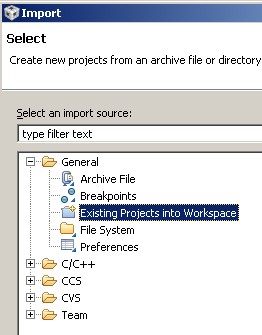

    Importing the MSP430X CCS project into the Eclipse workspace
    The dialogue box that appears when "Import" is first clicked

  2. In the next dialogue box, select FreeRTOS/Demo/MSP430X_MSP430F5438_CCS4 as the root directory. Then, make sure the RTOSDemo project is checked in the "Projects" area, and that the Copy Projects Into Workspace box is not checked, before clicking the Finish button (see the image below for the correct check box states, the finish button is not visible in the image).

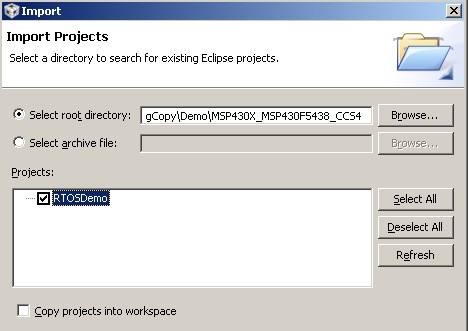

    Selecting the FreeRTOS MSP430X CCS project to import into Eclipse
    Make sure that RTOSDemo is checked, and "Copy projects into workspace" is not checked

Building and running the demo application

  1. Ensure that CreateProjectDirectoryStructure.bat has been executed, and that the project has been correctly imported into the Eclipse workspace.

  2. Select the required build configuration.

    The CCS4 project contains four build configurations. All the build configurations demonstrate the same functionality, but with different run time models and optimisation settings as described in the table below.

    Build configuration Description
    Debug_Large_Data_Model Configured to use the large data model, the large code model, and with zero optimisation
    Release_Large_Data_Model Configured to use the large data model, the large code model, and with maximum optimisation.
    Debug_Small_Data_Model Configured to use the small data model, the large code model, and with zero optimisation.
    Debug_Small_Data_Small_Code_Model Configured to use the small data model, the small code model, and with zero optimisation.

  3. Select 'Rebuild All' from the IDE 'Project' menu.

  4. Select 'Debug Active Project' from the IDE 'Target' menu. The MSP430X flash memory will be programmed with the newly built binary. The debugger will then start and run to the beginning of main().


The top of this web page lists the FreeRTOS features that are demonstrated by the MSP430X5438 demo project. The comments contained in the main.c source file provide more information on how this functionality is implemented and achieved.

The following behaviour will be observed when the demo is executing correctly:

  • LED 2 will toggle each time the COM test transmit task transmits a character.

  • LED 1 is controlled from the tick interrupt hook function and is used to indicate that the tick interrupt is running. It will toggle every 0xFF milliseconds.

  • A status message will be displayed on the LCD every 5 seconds. If the demo is executing without error then the status will be displayed as PASS. In all other cases the status message will indicate which task or test has reported an error.

  • Pressing or releasing the joystick 'up' button will cause a string to be displayed on the LCD. The string will indicate the button state.

  • Pressing the joystick select button (pressing the joystick button directly downward toward the PCB on which it is mounted) will result in a message being displayed on the LCD indicating that a button interrupt has been generated.

RTOS Configuration and Usage Details

Configuring the RTOS tick interrupt

FreeRTOS requires exclusive use of a timer that is capable of generating a fast periodic interrupt called the RTOS 'tick' interrupt. The timer is configured in a user definable hook (or callback) function, so giving the application writer the flexibility to decide which timer peripheral is actually used. The name and prototype of the hook function is shown below:

void vApplicationSetupTimerInterrupt( void );

The constant configTICK_VECTOR must be set to the interrupt vector number of the chosen peripheral. configTICK_VECTOR is defined in the FreeRTOSConfig.h header file. This demo project includes an implementation of vApplicationSetupTimerInterrupt() that configures time TA0 to generate the tick interrupt and therefore sets configTICK_VECTOR to TIMER0_A0_VECTOR. The provided code will have to be modified only if the application being developed needs TA0 to be free for some other purpose.

RTOS port specific configuration

Configuration items specific to these demos are contained in FreeRTOS/Demo/MSP430X_MSP430F5438_CCS4/FreeRTOSConfig.h. The constants defined in this file can be edited to meet the needs of your application. In particular -
  • configTICK_RATE_HZ

    This sets the frequency of the RTOS tick interrupt. The supplied value of 1000Hz is useful for testing the RTOS kernel functionality but is faster than most applications require. Lowering this value will improve efficiency.

Each port #defines 'BaseType_t' to equal the most efficient data type for that processor. This port defines BaseType_t to be of type short.

Note that vPortEndScheduler() has not been implemented.

Interrupt service routines

Unlike most ports, interrupt service routines that cause a context switch have no special requirements and can be written as per the compiler documentation. The macro portYIELD_FROM_ISR() can be used to request a context switch from within an ISR. Note that portYIELD_FROM_ISR() must be the last statement in the ISR.

This demo project provides examples of FreeRTOS interrupt service routines - namely prvSelectButtonInterrupt() defined in main.c and prvUSCI_A0_ISR() defined in serial.c. Note that prvUSCI_A0_ISR() is implemented to stress the port and demonstrate queues being used from interrupts - it is not intended to be a demonstration of an efficient or a generic interrupt service routine!

Switching between the pre-emptive and co-operative RTOS kernels

Set the definition configUSE_PREEMPTION within FreeRTOS/Demo/MSP430X_MSP430F5438_CCS4/FreeRTOSConfig.h to 1 to use pre-emption or 0 to use co-operative.

Compiler options

As with all the ports, it is essential that the correct compiler options are used. The best way to ensure this is to base your application on the provided demo application files.

Memory allocation

Source/Portable/MemMang/heap_2.c is included in the demo application project to provide the memory allocation required by the RTOS kernel. Please refer to the Memory Management section of the API documentation for full information.
