Queues, Mutexes, Semaphores...
[Inter-task communication and synchronisation]

[See also Blocking on Multiple RTOS Objects]

The FreeRTOS tutorial book provides additional information on queues, binary semaphores, mutexes, counting semaphores and recursive semaphores, along with simple worked examples in a set of accompanying example projects.

FreeRTOS Mutexes

Mutexes are binary semaphores that include a priority inheritance mechanism. Whereas binary semaphores are the better choice for implementing synchronisation (between tasks or between tasks and an interrupt), mutexes are the better choice for implementing simple mutual exclusion (hence 'MUT'ual 'EX'clusion).

When used for mutual exclusion the mutex acts like a token that is used to guard a resource. When a task wishes to access the resource it must first obtain ('take') the token. When it has finished with the resource it must 'give' the token back - allowing other tasks the opportunity to access the same resource.

Mutexes use the same semaphore access API functions so also permit a block time to be specified. The block time indicates the maximum number of 'ticks' that a task should enter the Blocked state when attempting to 'take' a mutex if the mutex is not immediately available. Unlike binary semaphores however - mutexes employ priority inheritance. This means that if a high priority task blocks while attempting to obtain a mutex (token) that is currently held by a lower priority task, then the priority of the task holding the token is temporarily raised to that of the blocking task. This mechanism is designed to ensure the higher priority task is kept in the blocked state for the shortest time possible, and in so doing minimise the 'priority inversion' that has already occurred.

Priority inheritance does not cure priority inversion! It just minimises its effect in some situations. Hard real time applications should be designed such that priority inversion does not happen in the first place.

Mutexes should not be used from an interrupt because:

  • They include a priority inheritance mechanism which only makes sense if the mutex is given and taken from a task, not an interrupt.

  • An interrupt cannot block to wait for a resource that is guarded by a mutex to become available.

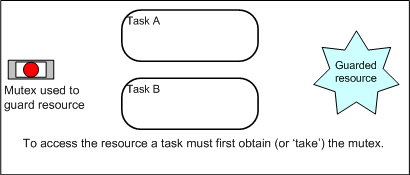

Using a mutex to guard access to a shared resource.
