Multitasking
[RTOS Fundamentals]

The kernel is the core component within an operating system. Operating systems such as Linux employ kernels that allow users access to the computer seemingly simultaneously. Multiple users can execute multiple programs apparently concurrently.

Each executing program is a task (or thread) under control of the operating system. If an operating system can execute multiple tasks in this manner it is said to be multitasking.


The use of a multitasking operating system can simplify the design of what would otherwise be a complex software application:

  • The multitasking and inter-task communications features of the operating system allow the complex application to be partitioned into a set of smaller and more manageable tasks.
  • The partitioning can result in easier software testing, work breakdown within teams, and code reuse.
  • Complex timing and sequencing details can be removed from the application code and become the responsibility of the operating system.
See also the FAQ "Why use an RTOS?".

Multitasking Vs Concurrency

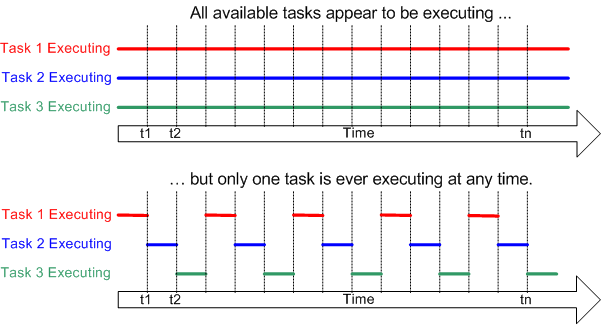

A conventional processor can only execute a single task at a time - but by rapidly switching between tasks a multitasking operating system can make it appear as if each task is executing concurrently. This is depicted by the diagram below which shows the execution pattern of three tasks with respect to time. The task names are color coded and written down the left hand. Time moves from left to right, with the colored lines showing which task is executing at any particular time. The upper diagram demonstrates the perceived concurrent execution pattern, and the lower the actual multitasking execution pattern.



Next: RTOS Fundamentals - Scheduling
